How to remove the rear and front drive shafts on BMW 330i?

To remove the rear driveshaft, block the front wheels and raise the rear of the vehicle on jackstands. Remove the exhaust system and heat shield, and if necessary, unbolt the exhaust system mounting bracket. Make alignment marks between the shaft, transmission flange, and rubber coupling. Loosen and remove the nuts and bolts securing the coupling to the transmission. Make alignment marks between the driveshaft and differential flange, then unscrew the bolts securing the driveshaft to the rear differential. With the assistance of an assistant, support the driveshaft and unscrew the center support bearing bracket retaining bolts. Lower the center of the shaft and disengage it from the transmission and rear differential. Remove the shaft from underneath the vehicle. Inspect the rubber coupling, support bearing shaft, and universal joints. Inspect the transmission flange locating pin and driveshaft bushing for signs of wear or damage. Replace any worn or damaged parts. Rotate the support bearing to check for smooth turning and replace if difficult or gritty. Apply moly-based lubricant grease to the transmission pin and shaft bushing, then maneuver the shaft into position. Align the marks made prior to removal and engage the shaft bushing with the transmission and rear differential unit flanges. Install the bearing support bracket retaining bolts, tighten the rear coupling bolts, and install new retaining nuts. Tighten the support bracket bolts. Install the exhaust system. To remove the front driveshaft on AWD models, block the rear wheels and raise the front of the vehicle on jackstands. Remove the engine splash shield and front subframe reinforcement panel if equipped. Make match-marks on the front differential flange and the front of the driveshaft, as well as the rear of the driveshaft and the flange at the transfer case. Remove the bolts securing the driveshaft front yoke to the differential flange, then remove the bolts securing the driveshaft rear flange to the transfer case. Remove the driveshaft from the vehicle. Installation is the reverse of removal, replacing any zinc-plated aluminum bolts.

Genuine BMW 330i Drive Shaft

Axle Shaft

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Series

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

12 Drive Shafts found

View related parts

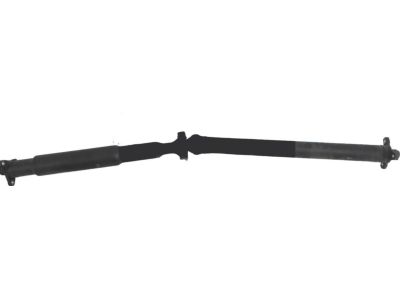

BMW 330i Automatic Gearbox Drive Shaft
Part Number: 26107527357
$1426.39 MSRP: $1866.32
You Save: $439.93 (24%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Automatic Drive Shaft Gearbox; Drive Shaft
- Warranty: This genuine part is guaranteed by BMW's factory warranty.
Fits the following Vehicles:
- 2006 BMW 330i | Sedan(E90)
View related parts
BMW 330i Automatic Gearbox Drive Shaft
Part Number: 26108605231
$1355.07 MSRP: $1773.00
You Save: $417.93 (24%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Automatic Drive Shaft Gearbox; Drive Shaft, Drive Shaft Assembly
- Warranty: This genuine part is guaranteed by BMW's factory warranty.
Fits the following Vehicles:
- 2017-2018 BMW 330i | Sedan(F30)
View related parts
BMW 330i Drive Shaft
Part Number: 26117505206
$1299.83 MSRP: $1626.78
You Save: $326.95 (21%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Manual Drive Shaft Gearbox
- Warranty: This genuine part is guaranteed by BMW's factory warranty.
Fits the following Vehicles:
- 2001-2005 BMW 330i | Sedan(E46)
View related parts
BMW 330i Drive Shaft
Part Number: 26109485283
$1324.83 MSRP: $1733.44
You Save: $408.61 (24%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Drive Shaft Assembly
- Replaces: 26-10-8-741-843
- Warranty: This genuine part is guaranteed by BMW's factory warranty.
Fits the following Vehicles:
- 2019-2023 BMW 330i | 4 Cyl 2.0 L GAS, Sedan(G20)
View related parts
BMW 330i Drive Shaft
Part Number: 26108852077
$1426.39 MSRP: $1866.32
You Save: $439.93 (24%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Drive Shaft Assembly
- Warranty: This genuine part is guaranteed by BMW's factory warranty.
Fits the following Vehicles:
- 2025 BMW 330i | 4 Cyl 2.0 L MILD HYBRID EV-GAS (MHEV)
View related parts
BMW 330i PROP SHAFT
Part Number: 26108848018
$1426.39 MSRP: $1866.32
You Save: $439.93 (24%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Drive Shaft, Drive Shaft Assembly
- Warranty: This genuine part is guaranteed by BMW's factory warranty.
Fits the following Vehicles:
- 2023-2024 BMW 330i | 4 Cyl 2.0 L GAS
View related parts
BMW 330i Drive Shaft
Part Number: 26108605226
$1426.39 MSRP: $1866.32
You Save: $439.93 (24%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Manual Drive Shaft Gearbox
- Warranty: This genuine part is guaranteed by BMW's factory warranty.
Fits the following Vehicles:
- 2017-2018 BMW 330i | Sedan(F30)
View related parts
BMW 330i Drive Shaft
Part Number: 26107527356
$1426.39 MSRP: $1866.32
You Save: $439.93 (24%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Manual Drive Shaft Gearbox
- Warranty: This genuine part is guaranteed by BMW's factory warranty.
Fits the following Vehicles:
- 2006 BMW 330i | Sedan(E90)
View related parts
BMW 330i 6 Gear Transmission Drive Shaft Assembly
Part Number: 26117523913
$1299.83 MSRP: $1626.78
You Save: $326.95 (21%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Drive Shaft Assy 6 Gear Transmission; Drive Shaft
- Warranty: This genuine part is guaranteed by BMW's factory warranty.
Fits the following Vehicles:
- 2001-2005 BMW 330i | Sedan(E46)
View related parts
BMW 330i Automatic Gearbox Drive Shaft
Part Number: 26117505214
$1299.83 MSRP: $1626.78
You Save: $326.95 (21%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Automatic Drive Shaft Gearbox; Drive Shaft
- Warranty: This genuine part is guaranteed by BMW's factory warranty.
Fits the following Vehicles:
- 2001-2005 BMW 330i | Sedan(E46)
View related parts
BMW 330i Automatic Driveline Drive Shaft Auto Driveshaft
Part Number: 26117505211
$1299.83 MSRP: $1626.78
You Save: $326.95 (21%)
Product Specifications
- Other Name: Automatic Drive Shaft Gearbox
- Warranty: This genuine part is guaranteed by BMW's factory warranty.
Fits the following Vehicles:
- 2001-2005 BMW 330i | Sedan(E46)
View related parts
BMW 330i Drive Shaft
Part Number: 26107560156
Product Specifications
- Other Name: Manual Drive Shaft Gearbox
- Warranty: This genuine part is guaranteed by BMW's factory warranty.
Fits the following Vehicles:
- 2006 BMW 330i | Sedan(E90)

BMW 330i Drive Shaft

The BMW 330i Drive Shaft carries torque from the engine to the rear differential, allowing the vehicle to move its rear wheels. The Drive Shaft is designed as a hollow tube but is robust and strong. On either side, the Drive Shaft contains a yoke and a universal joint. It allows pivoting depending on the suspension's movement. Additionally, the balance is so precise that shudder is avoided. Across the different consecutive generations of the 330i, one-piece Drive Shaft installed in BMW chassis was the norm, with some variants using a two-piece with center support bearing to satisfy length and packaging limits. The primary difference is that the selected two-piece design Drive Shaft separates the run into front and rear sections, thereby reducing vibration and allowing steep operating angles, whereas the single unit saves weight and complexity. Both use cardan U-joints, but in cases of extreme angles, double cardan joints or constant-velocity joints deliver improved smoother rotation. If the joints lose lubrication or dents affect the balance weights, then alert 330i drivers and other BMW owners might notice vibration linked to speed, a signal for the right Drive Shaft. Maintaining the well-being of this component ensures the typical smooth and responsive nature of a BMW 330i.

If you are looking for OEM BMW 330i Drive Shaft, we highly recommend to shop with us. Not only do we offer budget friendly prices, but we also provide fast delivery. In addition, we have a hassle-free return policy on all genuine BMW 330i Drive Shaft that come backed by the manufacturer's warranty.

BMW 330i Drive Shaft Parts Questions & Experts Answers

Automatic Gearbox Drive Shaft
26107527357
Q:
How to remove the rear and front drive shafts on BMW 330i?
Posted by Zhou Z.
A:
To remove the rear driveshaft, block the front wheels and raise the rear of the vehicle on jackstands. Remove the exhaust system and heat shield, and if necessary, unbolt the exhaust system mounting bracket. Make alignment marks between the shaft, transmission flange, and rubber coupling. Loosen and remove the nuts and bolts securing the coupling to the transmission. Make alignment marks between the driveshaft and differential flange, then unscrew the bolts securing the driveshaft to the rear differential. With the assistance of an assistant, support the driveshaft and unscrew the center support bearing bracket retaining bolts. Lower the center of the shaft and disengage it from the transmission and rear differential. Remove the shaft from underneath the vehicle. Inspect the rubber coupling, support bearing shaft, and universal joints. Inspect the transmission flange locating pin and driveshaft bushing for signs of wear or damage. Replace any worn or damaged parts. Rotate the support bearing to check for smooth turning and replace if difficult or gritty. Apply moly-based lubricant grease to the transmission pin and shaft bushing, then maneuver the shaft into position. Align the marks made prior to removal and engage the shaft bushing with the transmission and rear differential unit flanges. Install the bearing support bracket retaining bolts, tighten the rear coupling bolts, and install new retaining nuts. Tighten the support bracket bolts. Install the exhaust system. To remove the front driveshaft on AWD models, block the rear wheels and raise the front of the vehicle on jackstands. Remove the engine splash shield and front subframe reinforcement panel if equipped. Make match-marks on the front differential flange and the front of the driveshaft, as well as the rear of the driveshaft and the flange at the transfer case. Remove the bolts securing the driveshaft front yoke to the differential flange, then remove the bolts securing the driveshaft rear flange to the transfer case. Remove the driveshaft from the vehicle. Installation is the reverse of removal, replacing any zinc-plated aluminum bolts.
Answered by BMW Parts Specialist Javier / Aug 20, 2024
