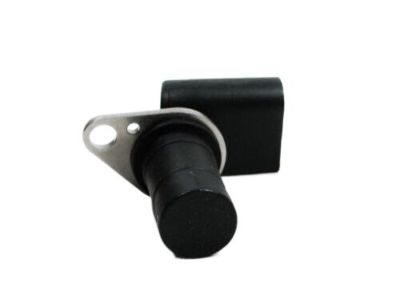

BMW 12141709616 Crankshaft Position Sensor

The Crankshaft Position (CKP) sensor/engine speed sensor provides the Engine Control Module (ECM) unit with engine speed information. The sensor reads the information from a tool hed wheel mounted on or integral with the crankshaft. The S14 engines' speed sensor is mounted next to the cylinder identifying sensor on the bell housing and uses the teeth of the flywheel's ring gear for calculating the engine speed. The M20, M42, M50 and S50 engines up to and including 1995 vehicles (OBD I) have the CKP sensor/speed sensor mounted on the front engine cover and reads a toothed wheel mounted to the crankshaft pulley. On all 1996-98 models (OBD II compliant), the CKP sensor is mounted into the lower left rear portion of the engine block and reads a tool hed wheel mounted to the end of the crankshaft assembly. If the Engine Control Module (ECM) does not receive a signal from the Crankshaft Position (CKP) when the engine is cranked, the engine will not start. Use a BMW service tester, the OBD I blink code or on OBD II vehicles, use a suitable Data Scan Tool (DST) to check for faults or if capable, to read the values of the components. If this diagnostic equipmenl is not available, proceed as follows. The engine speed sensor provides the DME unit with engine speed information. The sensor reads the information from a tooth wheel mounted on the crankshaft hub except on the S14 engine. It can also be called the crankshaft sensor. The S14 engines speed sensor is mounted next to the cylinder identifying sensor and is removed in the same manner as the cylinder identifying sensor. The sensor on the S14 engine connects to a plug mounted in a group of 3 plugs on the engine compartment rear wall, next to the engine harness connector and diagnostic socket. It is the connector on the right side. Turn the ignition switch to the OFF position. Trace the sensor lead back to the connector and disconnect. Check the resistance between terminals 1 and 2. The resistance should be 49G-590 ohms. On front mounted Crankshaft Position (CKP) sensors, detach the CKP sensor connector. Use a digital ohmmeter and measure the resistance between the two outer terminals of the sensor. The measured resistance should be 1.150-1,400 ohms.

The Crankshaft Position (CKP) sensor/engine speed sensor provides the Engine Control Module (ECM) unit with engine speed information. The sensor reads the information from a tool hed wheel mounted on or integral with the crankshaft. The S14 engines' speed sensor is mounted next to the cylinder identifying sensor on the bell housing and uses the teeth of the flywheel's ring gear for calculating the engine speed. The M20, M42, M50 and S50 engines up to and including 1995 vehicles (OBD I) have the CKP sensor/speed sensor mounted on the front engine cover and reads a toothed wheel mounted to the crankshaft pulley. On all 1996-98 models (OBD II compliant), the CKP sensor is mounted into the lower left rear portion of the engine block and reads a tool hed wheel mounted to the end of the crankshaft assembly. If the Engine Control Module (ECM) does not receive a signal from the Crankshaft Position (CKP) when the engine is cranked, the engine will not start. Use a BMW service tester, the OBD I blink code or on OBD II vehicles, use a suitable Data Scan Tool (DST) to check for faults or if capable, to read the values of the components. If this diagnostic equipmenl is not available, proceed as follows. The engine speed sensor provides the DME unit with engine speed information. The sensor reads the information from a tooth wheel mounted on the crankshaft hub except on the S14 engine. It can also be called the crankshaft sensor. The S14 engines speed sensor is mounted next to the cylinder identifying sensor and is removed in the same manner as the cylinder identifying sensor. The sensor on the S14 engine connects to a plug mounted in a group of 3 plugs on the engine compartment rear wall, next to the engine harness connector and diagnostic socket. It is the connector on the right side. Turn the ignition switch to the OFF position. Trace the sensor lead back to the connector and disconnect. Check the resistance between terminals 1 and 2. The resistance should be 49G-590 ohms. On front mounted Crankshaft Position (CKP) sensors, detach the CKP sensor connector. Use a digital ohmmeter and measure the resistance between the two outer terminals of the sensor. The measured resistance should be 1.150-1,400 ohms.

Remove the front end reinforcement plate.

Check and clear fault codes from the ECM memory.

Unbolt the sensor from the bell housing, taking care not to discard any spacer shims if they are present.

If the OBD II system's misfire detection protocol identifies a catalyst-damaging fault due to a malfunction in the crankshaft sensor components, the malfunction indicator light (MIL) will illuminate.

Knock sensors monitor the combustion chambers for engine-damaging knock and can retard ignition spark if knock is detected. They are located on the left side of the cylinder block under the intake manifold and should be replaced as a pair if a fault is detected.
